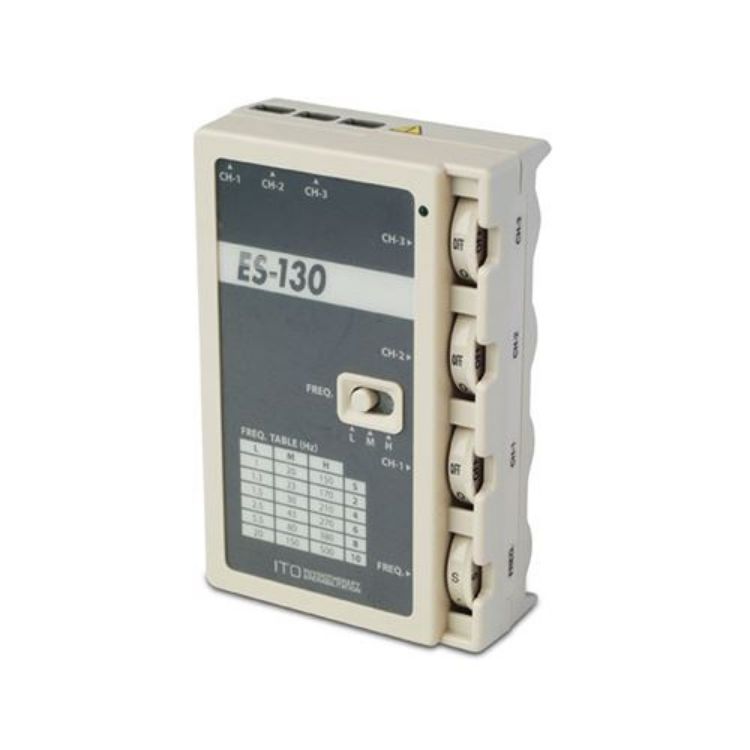

The ES-130 (formerly IC-1107) is a 3 channel, safe, reliable and easy to use unit. Ideal for busy clinics that require multiple units. Low/high intensity settings. Frequency range from 1-500 Hz. Suitable for needles. Unique wave pulse minimizes excessive charge build up in the tissue. With its fresh new look, the ES-130 is a compact, lightweight, sturdy, palmsize, high quality Japanese electro-therapy device. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light.
The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle. The pocket portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.
.3 X Lead Wire with alligator clips
.1 X 9V Battery
.1 X Carrying Case
. Independent intensity channels
L - 1 to 20 Hz
M - 20 to 150 Hz
H - 150 to 500 Hz
. Low volts & current: 0 to 10 volts, 0 to 20 milliamps
. Hi volts & current 0 to 20 volts, 0 to 40 milliamps
. Voltage max: 30 volts (100 kohm load)
. Pulse width: 100 microseconds (µS)
. Pulse shape: asymmetric biphasic square wave
. Pulse mode: continuous
. Power source: one 9 volt battery
. Freq indicator: flashing red light
. Size, wt, color: 4.5" x 3.2" x 1.2", 0.3 lbs, gray
Note: When using 9-volt Duracell Batteries with the ES-130, a thin shim (or paper) must be placed at the bottom of the battery to make proper contact (ie, Duracell are shorter in length). Also, in order to use the built-in battery check (located on the back side of unit), power must be turned on.
THis unit is not CSA approved.
