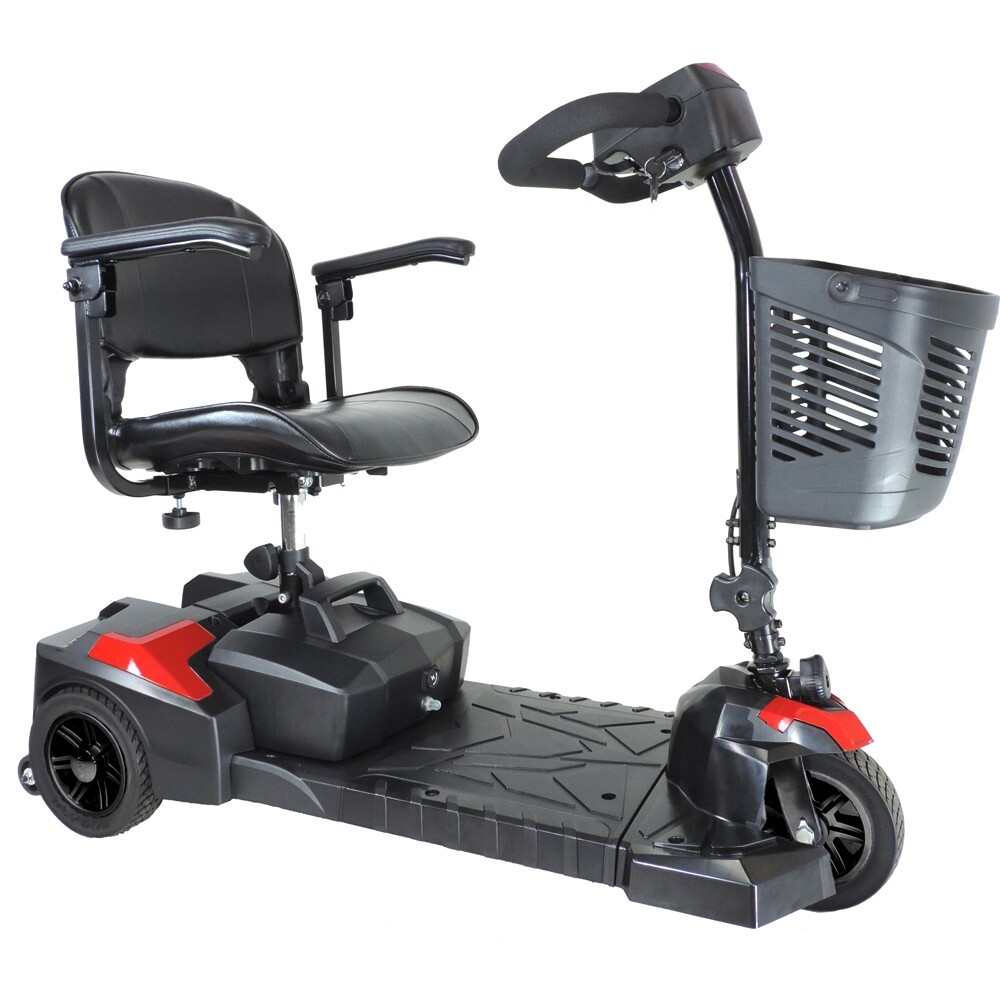

Drive Scout 3-Wheel Mobility Scooter
This Scout 3 wheel scooter is a small scooter with a big value. The Scout transportable scooter combines easy and convenient mobility and superios value. The 3-wheel Scout offers excellent maneuverability thanks to its smaller turning radius, making it ideal for indoor use, where nimbly maneuvering around obstacles is a necessity.
Features:

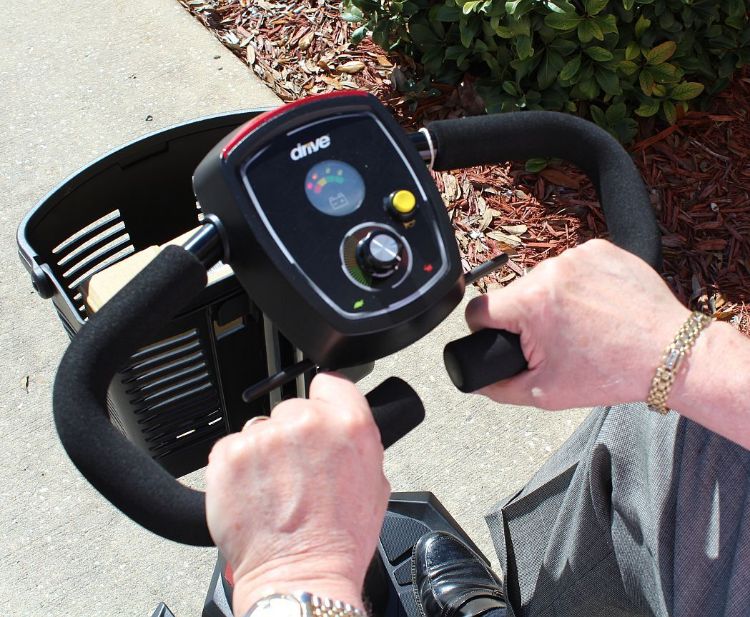

- Delta handles for comfortable push/pull throttle control

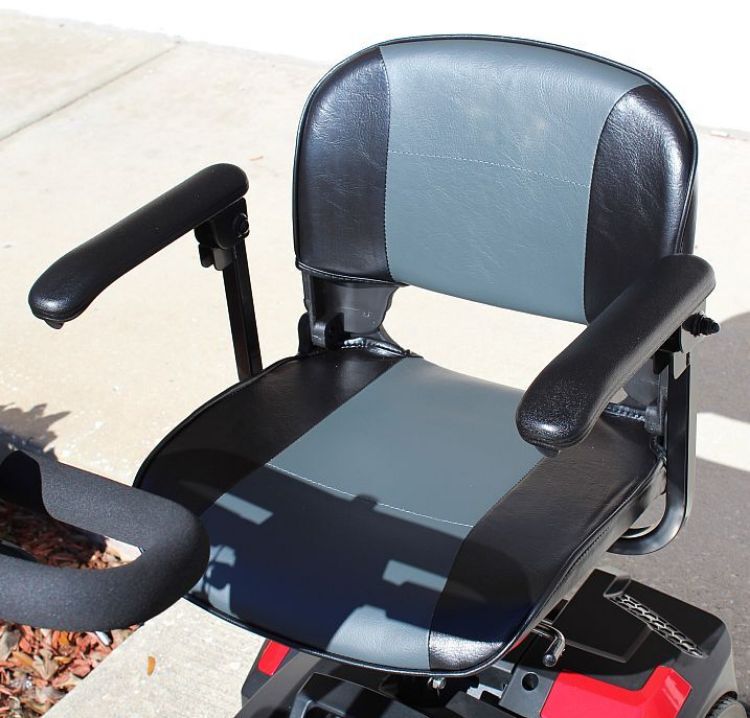

- Flip up armrests and swivel seat makes boarding and exiting your scooter simple
- Adjustable height seat allows users of any stature to position the seat at the ideal level
- Handy lock ensures battery remains tightly connected, even when driving over rough terrain

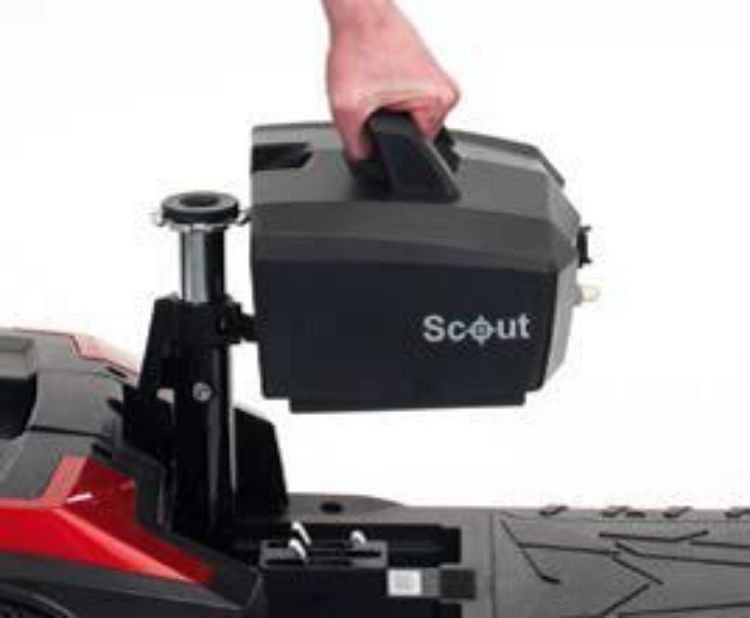

- Quick connect battery pack for convenient charging

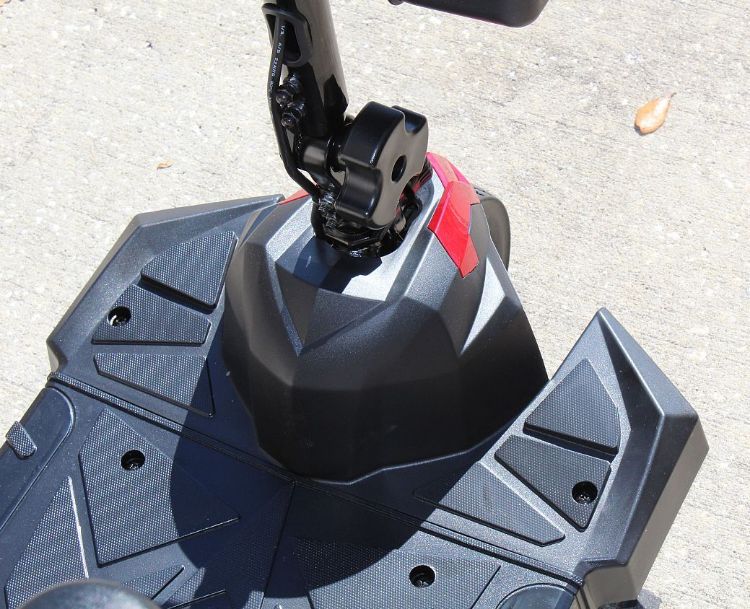

- Easy to adjust tiller angle positions the scooter controls where you want them

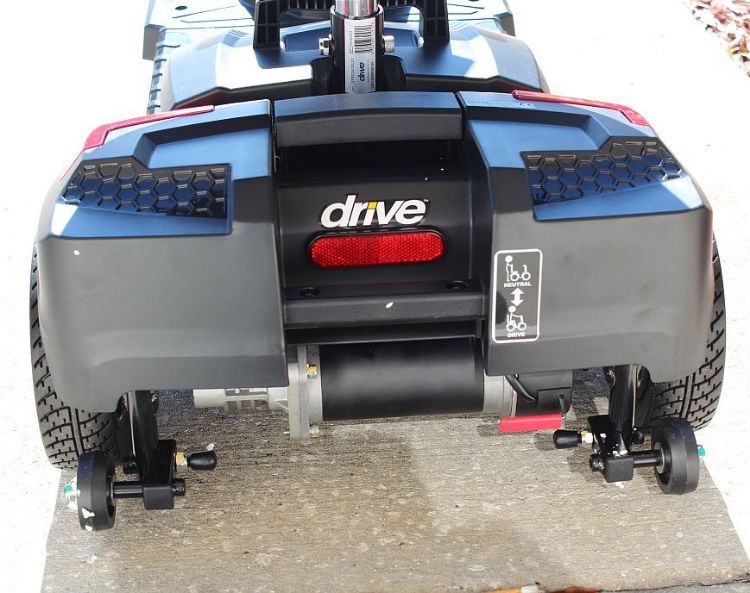

- Flat free tyres for worry free travel and rear anti-tip

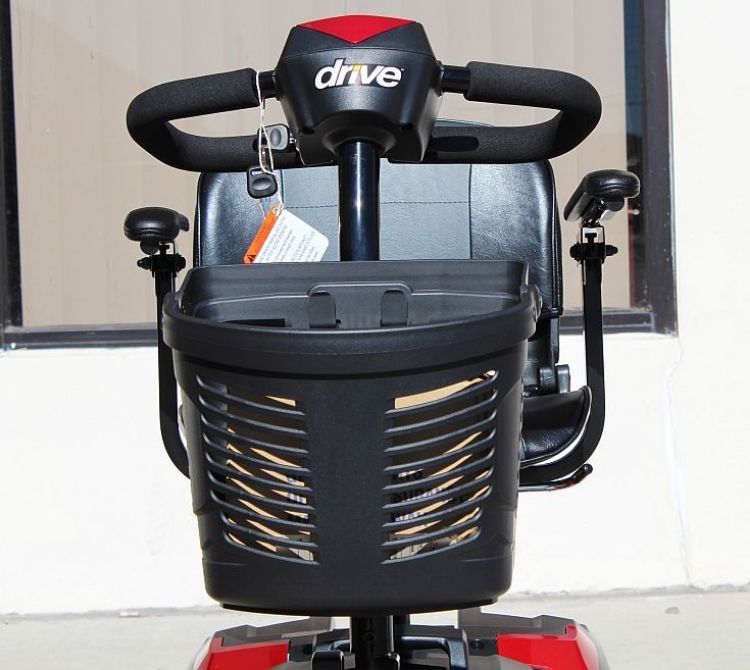

- Lightweight, durable front basket with convenient carry handle
- 16.5" Folding Seat.
- 4 mph top speed and a 15 mile maximum cruising range
Specifications Chart:
Specifications | |
Maximum Range | 9 miles |
Turning Radius | 45.5" |
Climbing Angle | 6" |
Ground Clearance | 2.5" |
Dimensions | 42.5" (L) X 20.5" (W) |
Floor to Seat Height | 17" - 19" |
Seat Dimensions | 16.5" (W) X 16" (D) |
Controller | CTE 45A |
Motor | 24V X 270W X 4700 rpm |
Batteries (Pair) | 12V X 12 AH |
Charger | 2A Offboard |
Brakes | Electromagnetic |
Front Wheels | 8" X 2" Flat-Free |
Rear Wheels | 8" X 2" Flat-Free |
Base Weight | 49 lbs. |
Battery Weight (pair) | 20 lbs. |
Seat Weight | 16 lbs. |
Total Weight | 85 lbs. |
Heaviest Piece Weight (Front Section) | 29 lbs. |
Warranty:
On Frame: Lifetime
On Electronic Controller/Drive Train Components: 14 Months
On Batteries: 6 Months
Quick and Easy Disassembly
/scout disassembly.jpg) | The easy portability and compact size of the Scout makes it the perfect option for users on the go. It disassembles in moments—great for taking it wherever you want to go, either around the neighborhood or far from home. Individual components are lightweight, easy to handle and compact enough to fit in a car trunk, van or truck. How to do it? - Remove the front basket
- Remove the seat
- Remove the battery pack
- Lower the tiller
- Separate the front and rear sections
|
Color Change Panels
Every Scout includes interchangeable color panels in red and blue so you can easily change your scooter's color to fit your mood—or your outfit!
/color change panel 3.jpg)
