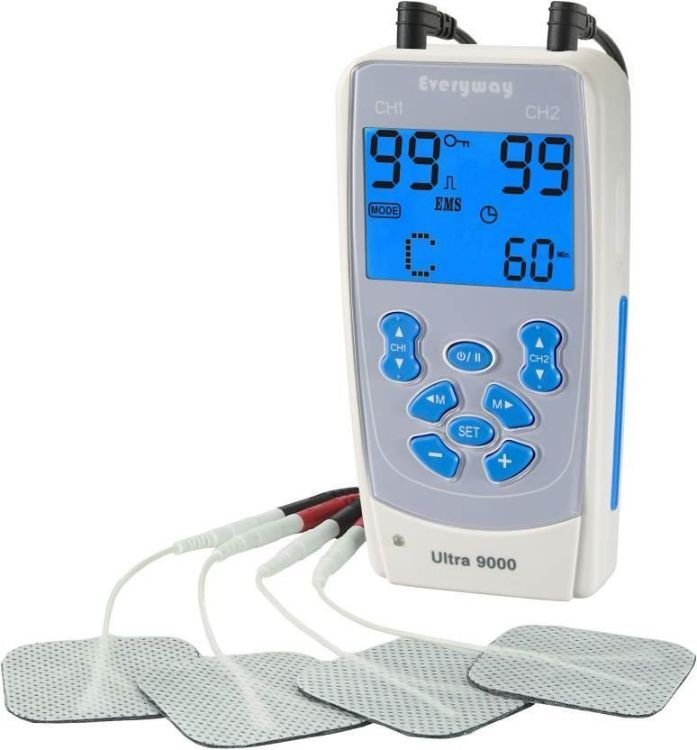

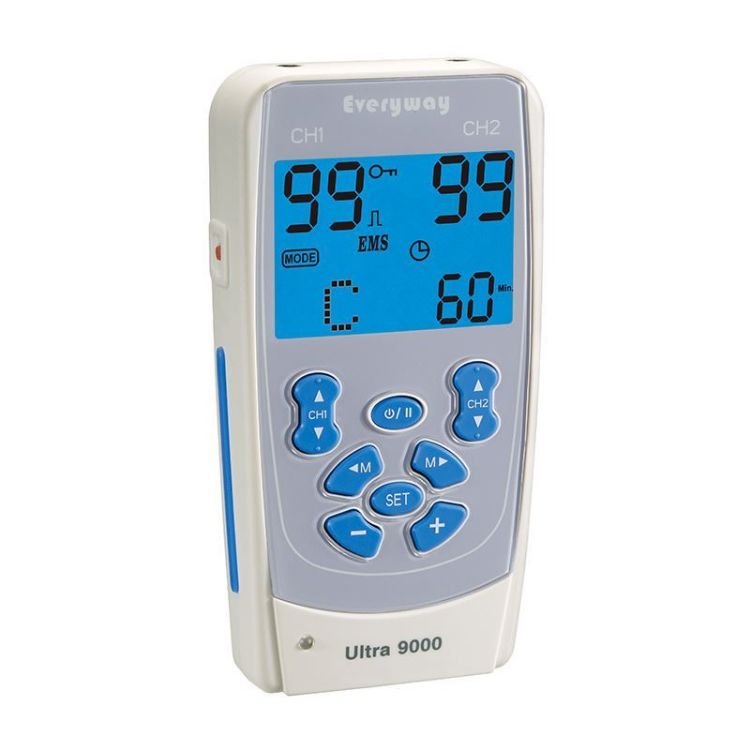

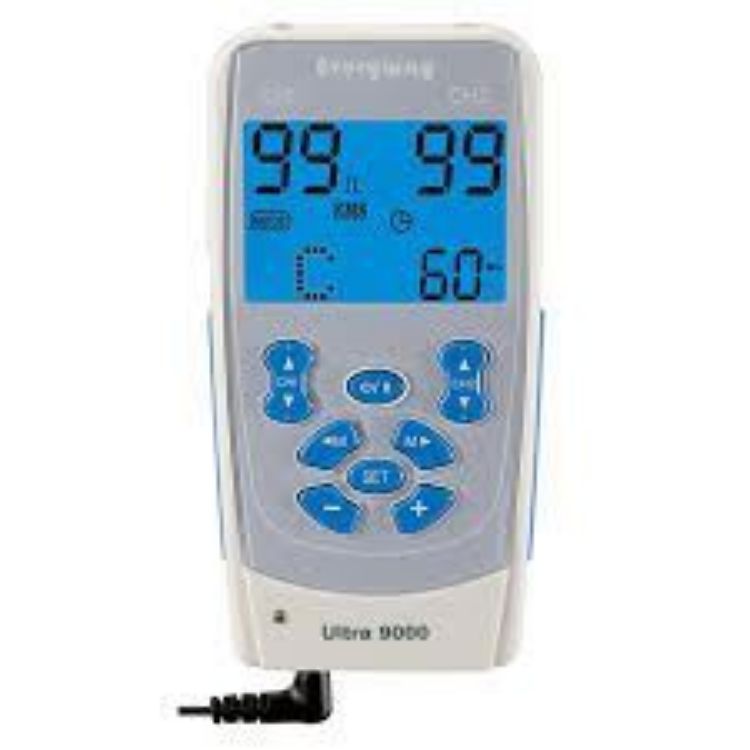

Ultra 9000 Multi-Function Combo Set

The Ultra 9000 Combo Set is a combination of Tens, EMS, IFC, Pelvic and Facial stimulator.

This unit can be used to treat and manage pain, stimulate the muscles, facial palsy and for incontinence treatment. The device is operated by the control of press buttons with 15 adjustable modes and 42 preset programs. This unit is an ideal fit for clinical use and homecare treatment.

Features:

• 5 modalities
• Contains large backlit LCD
• Digital press buttons control
• Treatment time countdown
• Adjustable beep sound
• Lock facility
• Easy and quick selection of modalities and modes
• Patient compliance meter
• Precise intensity control in 60 or 99 steps
• 15 adjustable modes and 42 preset programs

Specifications:

• Dual Channel
• Power - 9V Battery or AC power (needed for IF mode)
• Size - L=135mm, W=69mm, H=32mm
• Weight - 215gm with battery
• Modality - TENS, EMS, IF, Pelvic and Facial Stimulation

Modes:

1. TENS: B, N, M,S1, S2, P(P01-P12) 5 adjustable modes, 12 presets
2. EMS: C,S,A,P(P01-P12), 3 adjustable modes, 12 presets
3. IFC: 1/1,6/6,10/10,SW1,SW2,R,P(P01-P06), 7 adjustable modes,6 presets
4. Pelvic: P(P01-06) 6 presets
5. Facial: P(P01-06) 6 presets

TENS/EMS:

• Pulse amplitude: Adjustable, 0-100mA peak into 500 ohm load each channel, 99 steps of intensity control
• Wave form: Asymmetrical bi-phasic square pulse
• Voltage: 0-50V(Load: 500ohm)
• Pulse rate: Adjustable, 2-150 Hz, 1Hz/step
• Pulse width: Adjustable, 50-400 microseconds, 10 µs/step
• On time: Adjustable, 2-90 seconds, 1 sec./step
• Off time: Adjustable 0-90 seconds, 1 sec./step
• Ramp time: Adjustable, 1-8 seconds, 1 sec./step
• Timer: Adjustable, 1-60 minutes and C(Continuous)

IFC:

• Pulse amplitude: Adjustable, 0-60mA peak into 500 ohm load each channel, 60 steps of intensity control.
• Carrier frequency: 4000Hz fixed (CH1)
• Modulating frequency: 4004-4160Hz, adjustable (CH2)
• Voltage: 0-30V(load: 500ohm)

IFC Frequency Modes:

• Constant Mode: Constant stimulation, 4-160bps
• Adjustable frequency shift: Seven modes C, 1/1 abrupt shift, 6/6 abrupt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped and R(repeat) bps can be adjusted.
• Auto Sweep: 4-45 bps, 80-145 bps & 4-SET bps
• Sweep Time: 15 seconds
• Frequency shift percent: Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency.
• Output configuration: Quad polar (4 electrodes)
• Wave form: Symmetrical balanced Sine wave.
• Interference pulse freq: 4-160 bps, adjustable, 4 bps/step
• Pulse duration: 125µs maximum
• Timer: Adjustable, 1-30 minutes

Facial and Pelvic Stimulator:

• Pulse amplitude: Adjustable, 0-60mA peak (Load: 500ohm), 60 steps of intensity control
• Wave form: Asymmetrical bi-phasic square pulse
• Voltage: 0-30V(Load: 500ohm)
• Programs: 6 Facial stimulation preset programs, 6 pelvic stimulation preset programs. The programs are not adjustable. Timer of the above two modes are fixed.

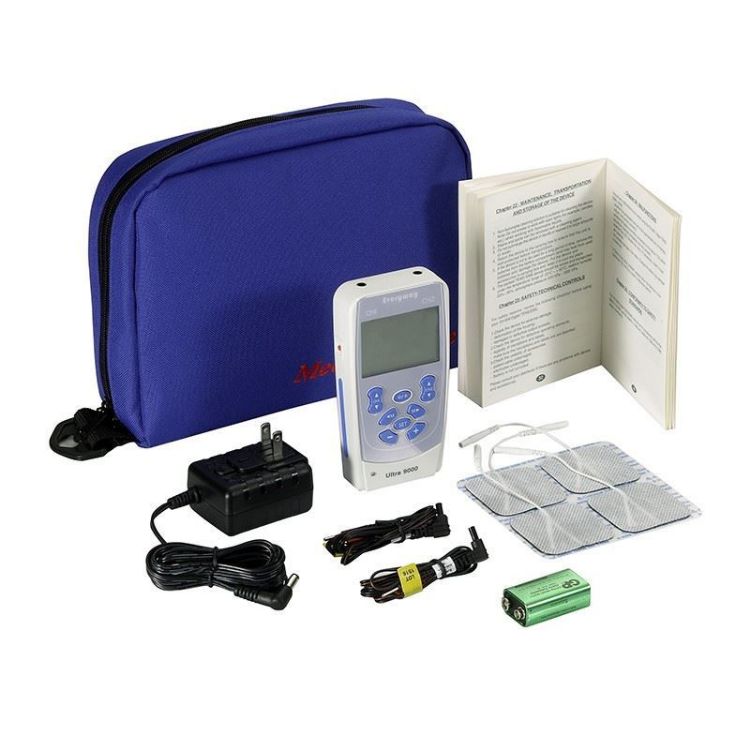

The Ultra 9000 Multi-Function Combo includes:

Ultra 9000 unit, soft carrying case, 40 reusable self adhesive electrodes, 9 volt battery, AC power adapter, 2 lead wires, instruction manual.

Also available in 2 other options:

• ERP1375-04 Rectal probe
• ERP1375-01 Vaginal Probe
