Ultraflex ONE Companion Joint

Ultraflex 3 Aircraft Aluminum Knee/Elbow Joint is used for making custom knee braces in orthopedic and neurological treatments. It helps with stretching at low loads. These braces are for therapy, not walking. They come in pairs: a power unit and a companion. They can move in both directions, with a total adjustable range of ±140º or 280º. Safety and therapy settings lock in every 20º. It can be locked at any position within 280º. The power joint has integrated dynamic power assistance (extension/flexion) with a strength of 7.5 Nm (66 in·lb) from an 85D power unit. The weight with full struts is 165g (6 oz.) for Knee/Elbow and 75g (2.5 oz.) for Ankle/Wrist.

Ultraflex 3 Stainless Steel Ankle/Wrist ROM Joint is useful for creating custom wrist supports in orthopedic and neurological rehabilitation. It helps with low-load stretching. It can move in both directions, with an adjustable range of ±140º or a total of 280º. It has safety and therapeutic locks in 20º steps. You can lock it in any position within 280º. The power assists, helping with movement, are rated up to 10.2 Nm (90 in·lb) for the 85D power units. The weight with full struts is 290g (6 oz.) for knee/elbow and 250g (2.5 oz.) for ankle/wrist. The joint heads are made of ASTM A240/A240M Type AISI 410 (Martensitic stainless) and are heat-treated to HRC 38-42 (electropolished). The struts are also A240/A240M Type AISI 410 (Martensitic stainless) and are heat-treated to HRC 38-42 (electropolished). The dimensions are 3.175mm(18”) x 12.7mm(1/2”) x 254mm(10”).

Ultraflex ADR Pediatric Knee Joint is useful for making personalized orthoses to address walking problems, weak muscles and joints, and instability, which improves movement. Orthoses with this joint are final and not meant for stretching. The sit-to-stand slide lock/safety release at the joint is easy to use and doesn't require much effort for patients with good understanding and hand skills. It works similarly to the KO USS but without a cable and lever.

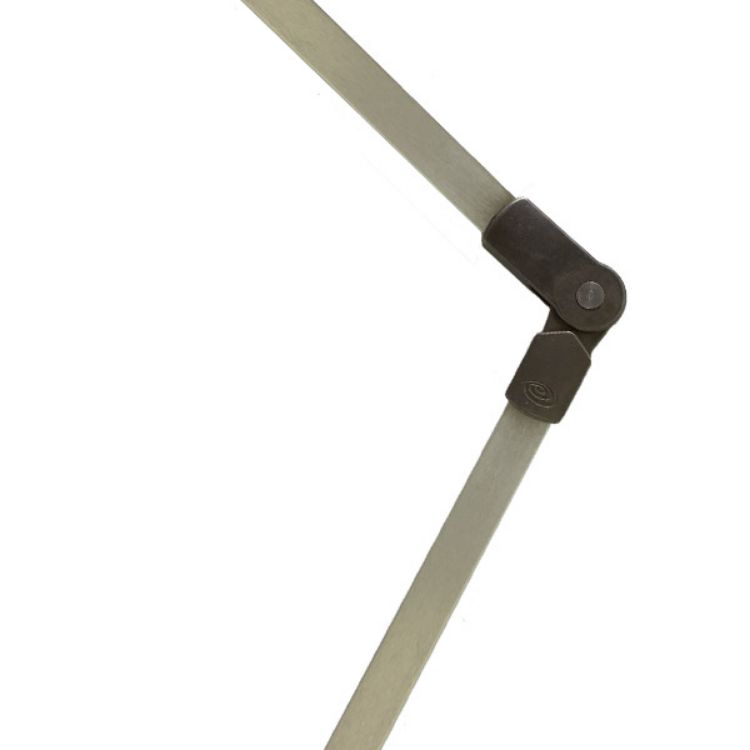

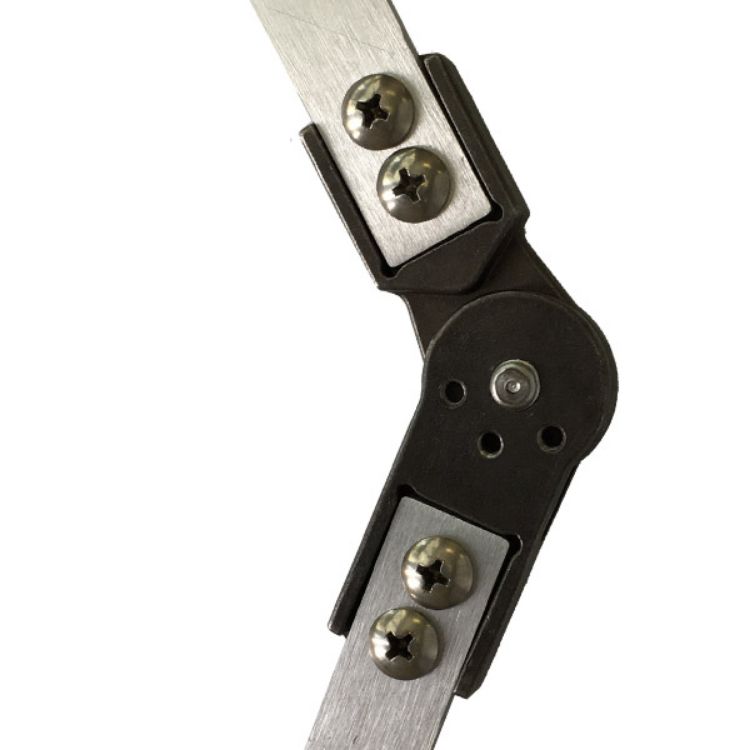

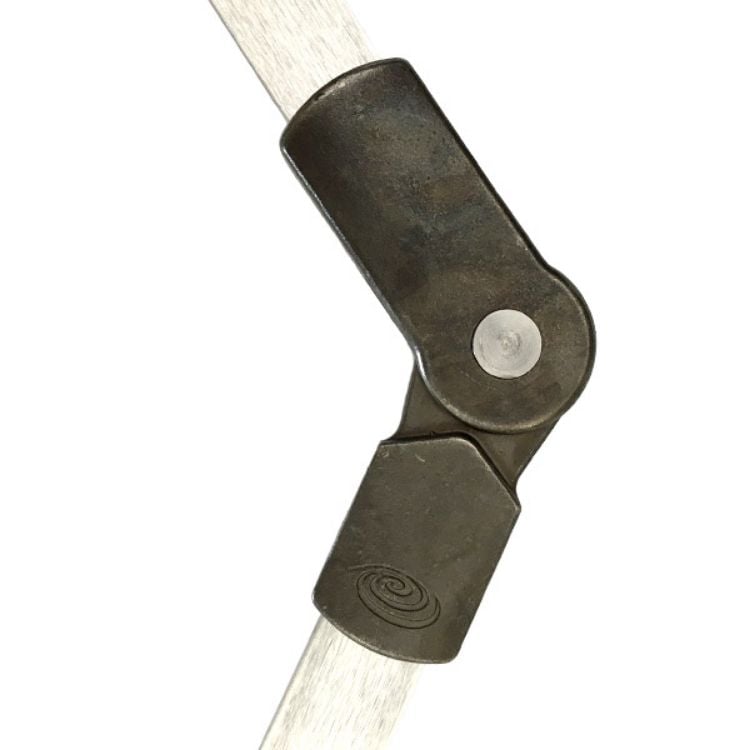

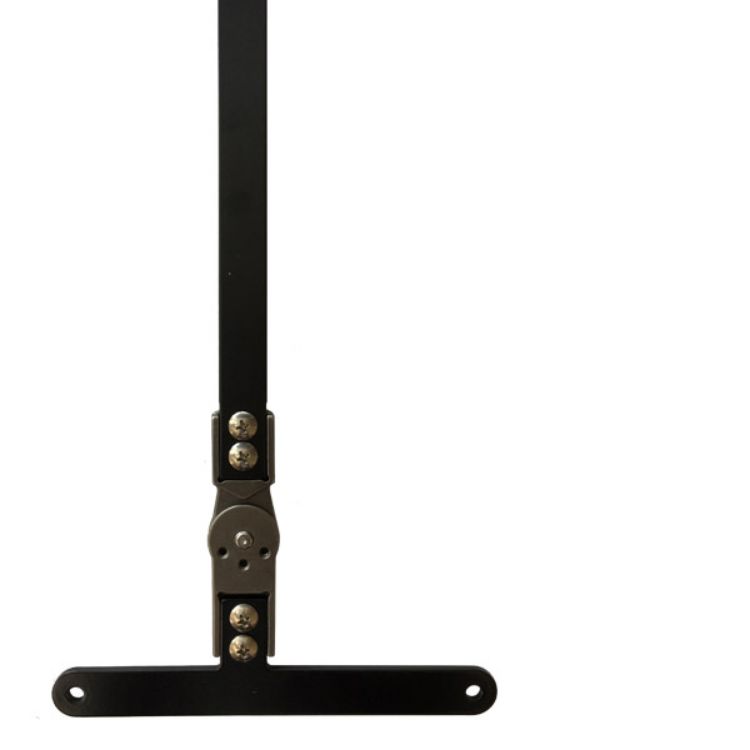

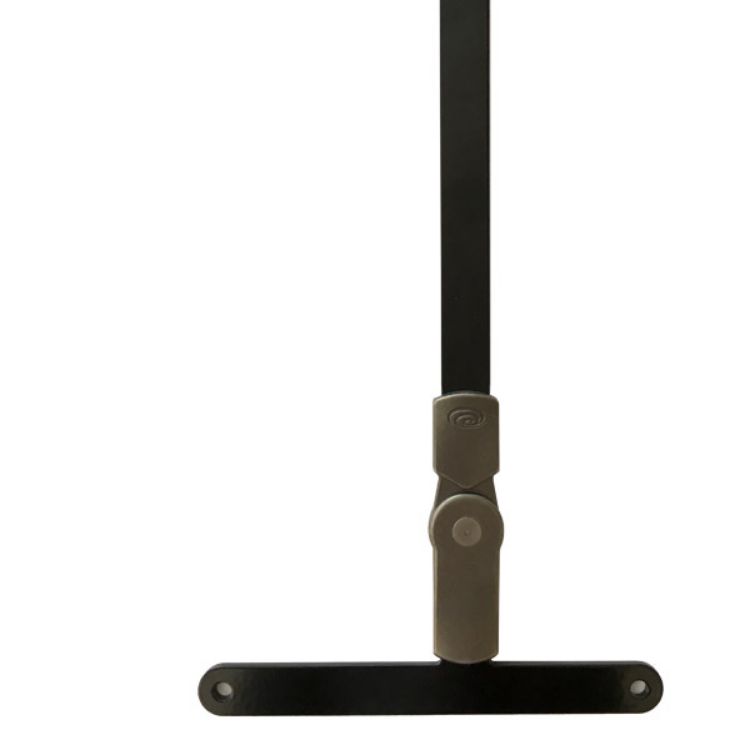

Ultraflex ONE Companion Joint comes with a companion joint that stops moving at 20 and 80 degrees. There's also an option for a companion joint with a t-stirrup.

The Ultraflex Pediatric Elbow/Knee Range of Motion Joint is a big step forward in helping with muscle stiffness and recovery from injuries. This joint helps make custom supports for ankles, knees, wrists, and elbows to treat issues like muscle stiffness and help with healing after injuries.

Ultraflex USS Adult AFO Joint is useful for making custom ankle supports that help with walking problems, weak muscles, and unstable joints, making it easier to move around. These supports are final and aren't made for stretching. You get one for either the left or right foot. For people weighing up to 220 lbs, use two joints per foot if they weigh over 150 lbs. Use the left joint for the outside of the left foot or inside of the right foot. Use the right joint for the outside of the right foot or inside of the left foot. If the patient is under 150 lbs, use the left joint for the outside of the left foot and the right joint for the outside of the right foot. In that case, Ultraflex suggests using another joint, AFOP-ROM, for the inside of the support.

Ultraflex Wrist Range of Motion Joint is designed to improve wrist movement. It's made of strong aluminum for durability and lightness. Stainless steel parts add strength and accuracy to the joint. Plus, it has a smooth powder coating for protection and a stylish look.
